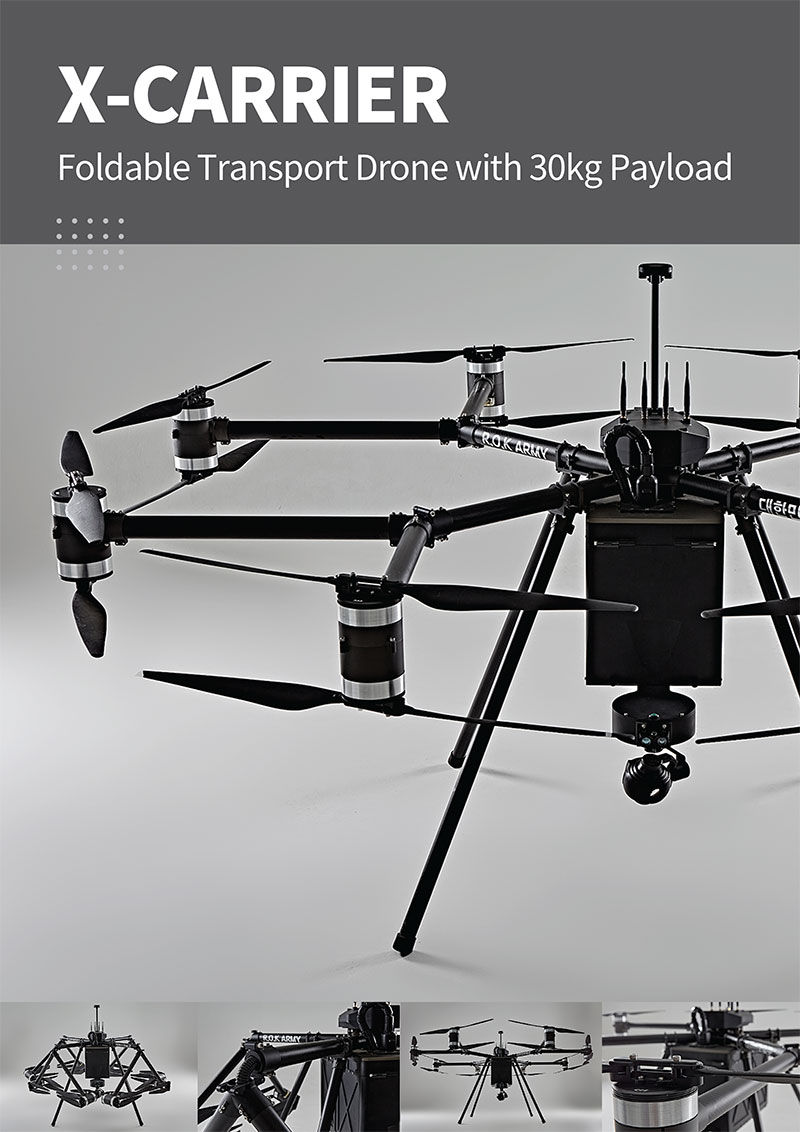

X- Carrier is developed to maximize wartime and peacetime operational capabilities by providing air transport support to remote or isolated areas where
ground access is impossible or restricted.
With its 30kg payload capacity, X-Carrier is also equipped with 5 lidar navigation sensors for safe and perfect transportation and is also capable of adaptive
air transport operations by using the exclusively designed storage box and winch lowering device.
Specification
· Size : Unfolded 2,030 x 2,030 x 1,242mm / Folded 1,580mm x 1,580mm x 920mm
· Weight : 56kg(w/ battery)
· Max Speed : 36km/h
· Operation Range : 3km
· Max Flight Altitude : 1km
· Wind Resistance : 12m/s
· Flight time(Payload) : 45min(None), 35min(10kg), 30min(20kg), 25min(30kg)
· Water Resistance : IPx4 and above
Special Features
· Obstacle Sensing in 5 Directions(5 Lidar Sensors)
· Double Octo Airframe with 16 Propellers
· Wind Shock Absorber
· Smart Winch System with Dual Locking Device
· Adaptive Receiving Controller(Optional)
· Thermal Insulation Housing Fuselage (Operation at -20℃~40℃)
· Flight in Rain(IPx4) and Strong Wind Resistance(12m/s Max)
· Autonomous Flight Control and Safe RTB
· Realtime FHD Transmission
· AI 3D Mapping Technology for Safe Skyway
Mission Equipment
· 10 x Zoom Camera
· IR Camera
· Winch System
· Exclusive storage box (50cm x 30cm x 20cm)
Field of Application
· Military Operations
· Agriculture Survey & Inspection
· Confined Space & Internal Inspection
· Offshore Survey & Inspection
· Production and Facility Survey & Inspection
· Surveillance & Boarder Patrol
